Professor Riley's Research on Turbulent, Reacting Flows



The phenomenon of turbulent, reacting flow plays an important role in many processes in nature and technology, ranging from the fate of ozone in the atmosphere, to the properties of gas turbine engines, to the efficient and clean use of energy. The present capability to accurately predict these flows is very limited, however, which inhibits the accurate prediction of environmental effects of pollutants, and also the design of new combustion devices. The goals of Professor Riley's research in this area are to better understand various features of turbulent reacting flows, to test and offer improvements to existing predictive models, and to develop new models when appropriate. This work is being carried out mainly in collaboration with Professor John Kramlich and Research Associate Oscar Flores, and has involved collaboration with Professor George Kosály, and former graduate students Andy Cook, Vebjorn Nilsen, Chris Montgomery, Ruddy Mell, and Steve deBruynKops, Satoshi Mitarai, Joe Nichols, Saensuk Wetchagarun, Steve Clark, and with current graduate student Weirong Wang. The research has been supported by the National Science Foundation, the Gas Research Institute, the Air Force Office of Scientific Research, and the National Aeronautics and Space Administration.

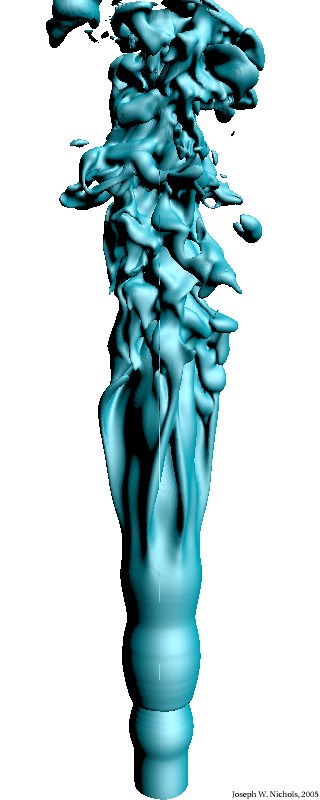

Some recent research has focused on the behavior of non-premixed jet flames, subject to the influence of both buoyancy and external forcing. The accompanying figure, taken from a simulation carried out by Joe Nichols of a transitioning jet, shows the instantaneous behavior of the temperature field in the jet. (The flow is bottom to top; the fuel jet is introduced into air from a bottom circular opening.) Nearly axisymmetric near field instabilities are observed close to the nozzle; farther from the nozzle the jet is seen to break down three-dimensionally, and the initial stages of turbulence are observed near the top of the plot.



One of the most promising new methods for predicting turbulent flows is Large-Eddy Simulation. Significant advances have been made in the development of this methodology as applied to non-reacting flows. The application to reacting flows has been much more difficult, however, due partly to the fact that the chemical reactions often occur on very small length scales. Working with former graduate students Andy Cook, Steve deBruynKops, Satoshi Mitarai, and Professor Kosály, Professor Riley has developed a methodology for applying Large-Eddy Simulations to reacting turbulent flows, utilizing the concept of laminar flamelets. This approach appears to have great potential for use in a wide range of problems.

A sampling of recent publications on turbulent, reacting flows is given below.



  1. Cook, A. W., and J. J. Riley. 1996. "Direct numerical simulation of a turbulent reactive plume on a parallel computer", J. Comp. Physics, Vol. 129, pp. 263-283.
  2. Riley, J. J.. 1996. "Numerical simulation of variable-density, reacting flows", in Computational Fluid Dynamics, M. Lesieur, P. Comte &J. Zinn-Justin, eds., Elsevier.
  3. Cook, A. W., J. J. Riley, and G. Kosály. 1997. "A laminar flamelet approach to subgrid-scale chemistry in turbulent flows", Comb. Flame, Vol. 109, pp. 332-341.
  4. deBruynKops, S. M., and J. J. Riley. 1997. "Scalar transport characteristics of the linear-eddy model", Comb. Flame, Vol. 112, pp. 253-260.
  5. Montgomery, C. J., G. Kosály, and J. J. Riley. 1997. "Direct numerical simulation of turbulent nonpremixed combustion with multistep hydrogen-oxygen kinetics", Comb. Flame, Vol. 109, pp. 113-144.
  6. Cook, A. W., and J. J. Riley. 1997. "Subgrid-scale modeling for turbulent, reacting flows", Comb. Flame, Vol. 112, pp. 593-606.
  7. deBruynKops, S. M., and J. J. Riley. 1998. "Direct numerical simulation of laboratory experiments in isotropic turbulence", Phys. Fl., Vol. 10(9), pp. 2125-2127.
  8. Cook, A. W., and J. J. Riley. 1998. "Progress in subgrid-scale combustion modeling", in Computational Fluid Dynamics Review 1998, M. Hafez, ed., Wiley.
  9. deBruynKops, S. M., J. J. Riley, G. Kosály, and A. W. Cook. 1998. "Investigation of modeling for non-premixed turbulent combustion", Flow, Turbulence and Combustion, Vol. 60(1), pp. 105-122.
  10. Riley, J. J. 1999. "Turbulent Combustion Modeling", in Transition, Turbulence and Combustion Modeling, (invited article), A. Hanifi et al., eds., Kluwer Academic.
  11. deBruynKops, S. M., and J. J. Riley. 2000. "Re-examining the thermal mixing layer with numerical simulations", Phys. Fluids, Vol. 12, pp.185-192.
  12. deBruynKops, S. M., and J. J. Riley. 2001. "Mixing models for large-eddy simulation of non-premixed turbulent combustion", J. Fluids Engr.-T. ASME, Vol. 123, pp. 341-346.
  13. deBruynKops, S. M., J. J. Riley, and G. Kosály. 2001. "Direct numerical simulation of reacting scalar mixing layers", Phys. Fluids, Vol. 13, pp. 1450-1465.
  14. deBruynKops, S. M., and J. J. Riley. 2003. "Large-eddy simulation of a reacting scalar mixing layer with Arrhenius chemistry", Comp. and Math. with Applns., Vol. 46(4), pp. 547-569.
  15. S. M. Martin, J. C. Kramlich, G. Kosály, and J. J. Riley. 2003. "The premixed conditional moment closure method applied to idealized lean premixed gas turbine combustors", ASME J. Engr. Gas Turbines and Power, Vol. 125, pp. 895-900.
  16. Mitarai, S., J. J. Riley, and G. Kosály. 2003. "A Lagrangian study of scalar diffusion in isotropic turbulence with chemical reaction", Phys. Fluids, Vol. 15, pp. 3856-3866.
  17. Sripakagorn, P., G. Kosály, and J. J. Riley. 2004. "Investigation of the influence of the Reynolds number on extinction and reignition", Comb. Flame, Vol. 136(3), pp. 351-363.
  18. Mitarai, S., J. J. Riley, and G. Kosály. 2004. "A new Lagrangian flamelet model for local flame extingction and re-ignition" Comb. Flame, Vol. 137(3), pp. 306-319.
  19. Mitarai, S., J. J. Riley, and G. Kosály. 2005. "Testing of turbulent mixing models for Monte-Carlo PDF simulations", Phys. Fluids, Vol. 17(4), Art. No. 047101.
  20. Riley, J. J. 2006. "Review of large-eddy simulation of non-premixed turbulent combustion" J. Fluids Engr., Vol. 128(2), pp. 341-376.
  21. Berrouk, A. S., D. E. Stock, D. Laurence, and J. J. Riley. 2008. "e;Heavy particle dispersion from a point source in turbulence pipe flow"e;, Int. J. Multiphase Flow, Vol. 34(10), pp. 916-923.
